SOLUTIONS

We offer the best possible solution for decorative glass
Sandblasting, Acid etched, Stained glass, Painting, frosting glass, emulsification ...
This is a production line !
Hot roll laminator for glass,glass laminating machine,glass film laminating machine,glass stikcer laminator,glass paper laminating machine
Vertical glass cutting plotter,vertical glass engraving machine,glass engraving machine,glass film engraving machine,glass vinyl film engraving machine
glass sandblasting,glass sandblasting machine,glass sandblast machine,glass sandblast glass sand machine,horizontal glass sandblasting machine,horizontal glass sand machine,horizontal glass sandblast machine,horizontal sandblasting machine,horizontal sand machine
Film/Sticker
Lamination
Film/Sticker
Cutting
Horizontal
Sandblasting

The heatable and Pneumatic pressure system make high efficiency and good quality.
The heatable roller is made out of silicone rubber, which can be heated up to 120oC. The glue film can be heated while laminating on the glass surface.
The high temperature and high pressure can ensure excellent lamination performances, high adhesive strength, no air bubbles, no wrinkles.

The traditional method is to use a small size cutting plotter to cut the pattern on the vinyl protective film, then paste the film onto the glass for further processing. ​



Now, we totally changed the production process. With the Artcut machine, you paste the protective film on the glass first, and then cut the pattern directly on the film, then peel off the parts where the glass will be sandblasted.

The traditional sandblasting machine use compressed air force, spray the surface of the glass.



Now, we present you the new horizontal sandblasting machine, which does not use air compressor and no spray nozzles.​

The glass moves from one side to another side on the conveyor belt in a speed of 1 meter per minutes.


cutting plotter,cutter plotter,glass laser cutting plotter,glass laser cutter plotter,glass laser engraving machine,glass laser cut,glass cutting plotter,glass cutter plotter
Our creative


ABOUT

State-of-the art Cutting & Sandblasting process

We manufacture three machines to do sandblasting:

  1. Laminator: applies vinyl film onto glass

  2. Vertical cutting plotter: cuts vinyl film

  3. Horizontal sandblasting machinesandblasting using turbine

There are different sizes available for each machine.

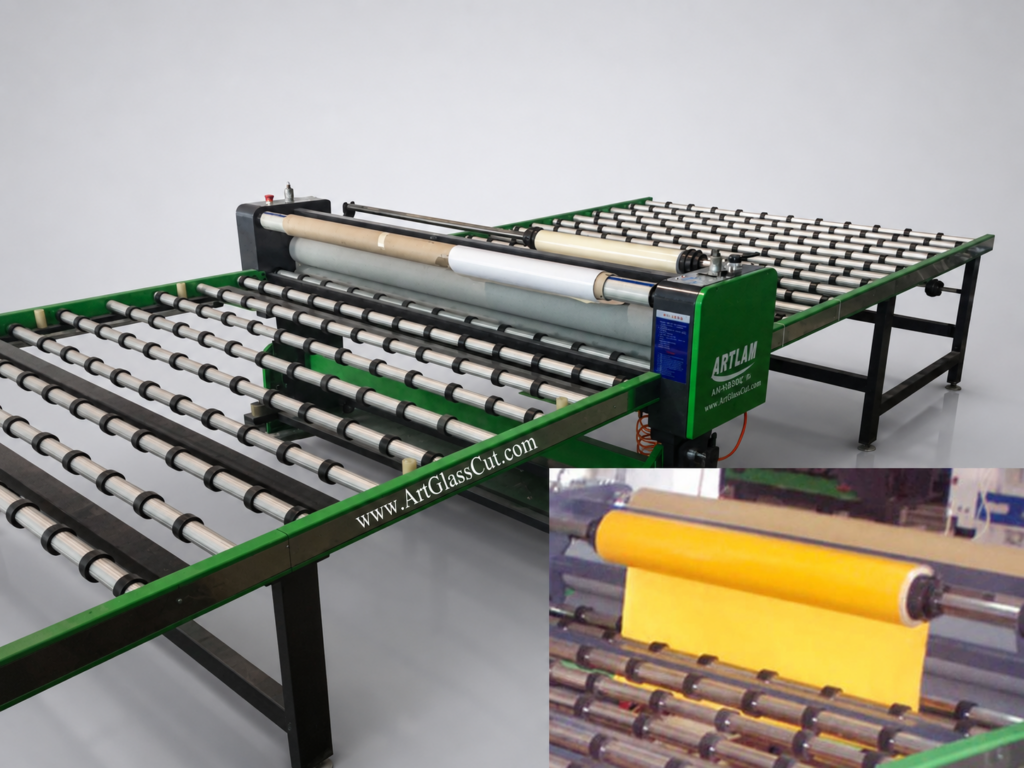

Film laminator: 1300mm and 1850mm. A heatable pressing roller can heat the adhesive and prevent bubbles and wrinkles on the glass surface.

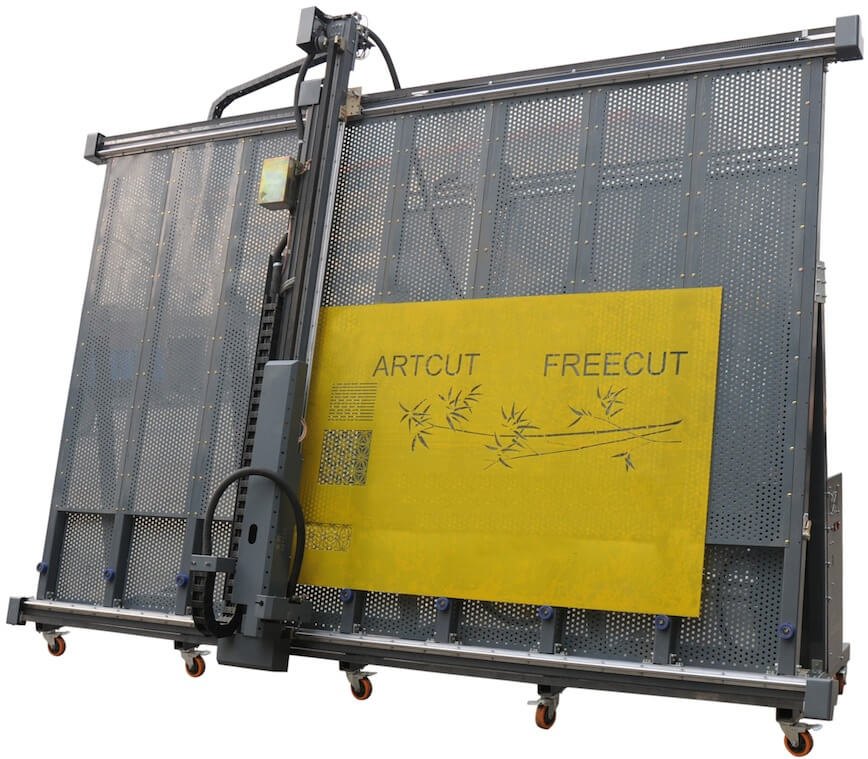

Film cutting plotter: 1220x1830mm, 1830x2440mm, 1830x3300mm, 2440x3660mm. There are two types: blade type and laser + blade type.

Sandblasting machine has two types: Vertical and Horizontal.

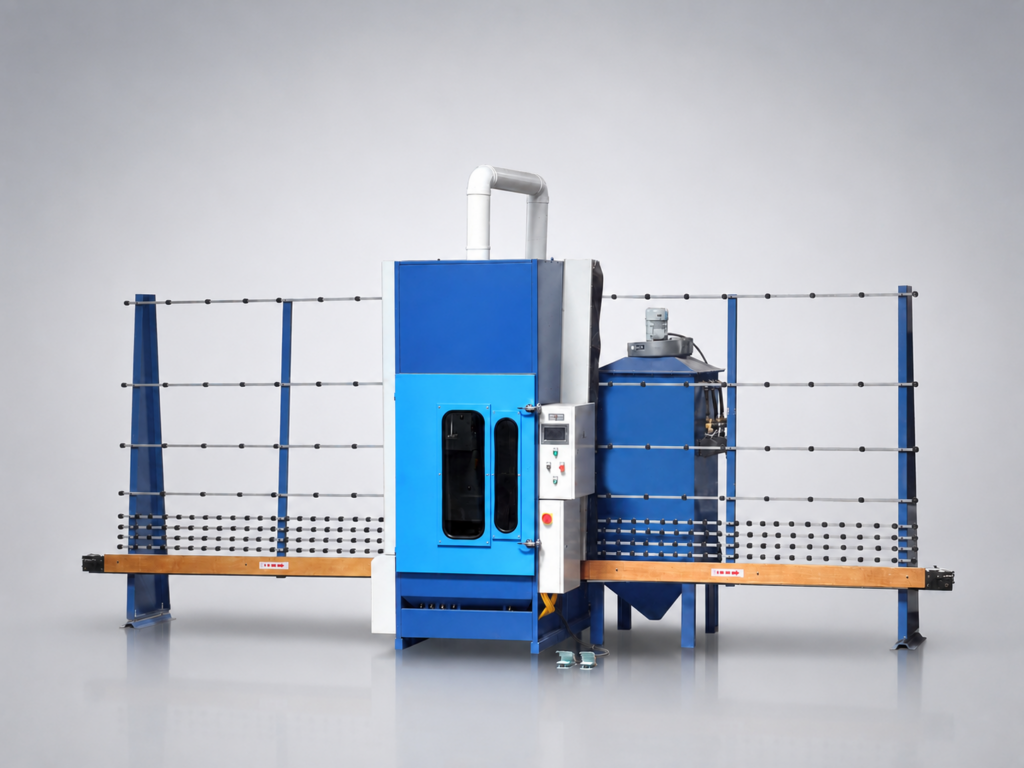

Vertical Sandblasting Machine is working in traditional ways with spray nozzles. Three height sizes: 1600mm, 2000mm, and 2500mm.

Horizontal Sandblasting Machine is working in a new way, which use Turbocharger to force the sand abrasive to blast the glass surface. It has a high production efficiency. The working width ranges from 1200mm to 3100mm. There are three widths that are most popular: 1200mm, 1900mm, and 2500mm.



These above can be used for Sandblasting, Acid etched, Stained glass, Painting, frosting glass, emulsification ...

We look forward to assisting you to meet you and your customers’ requirement.

2005

Since

2008

Vertical cutting plotter created

2009

Horizontal sandblasting machine created

2022

4,600 customers in the world

APPLICATIONS



MATERIALS

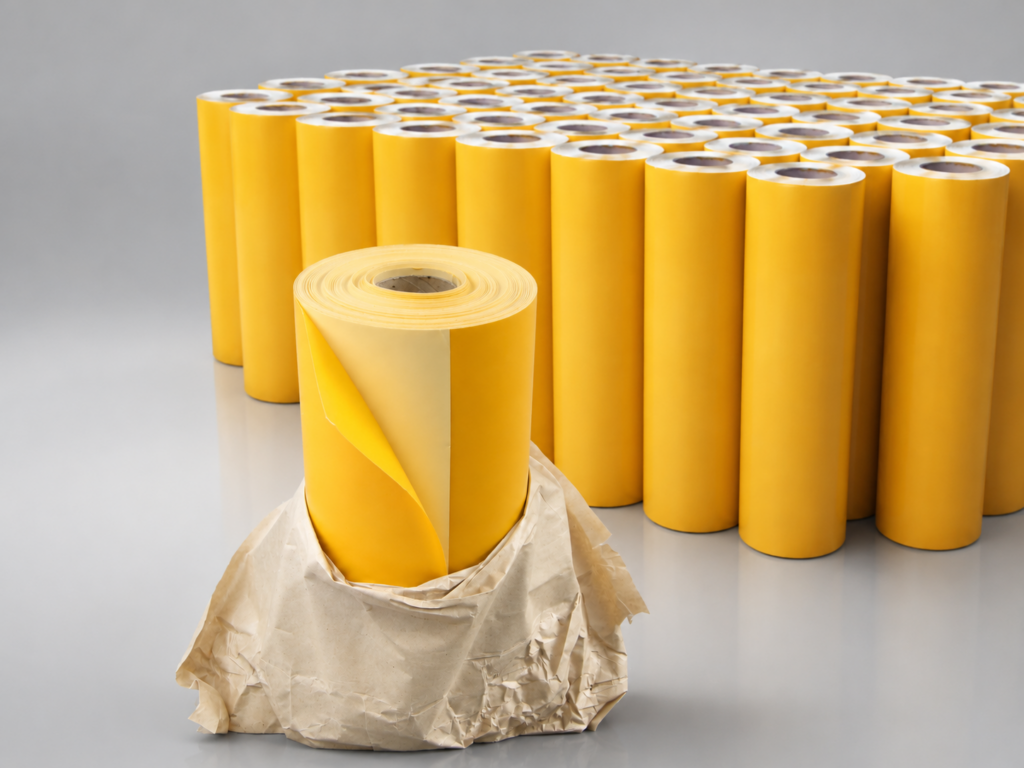

PVC film/sticker
(Vinyl film/sticker)

This PVC protective film is specially used for glass industry in sandblasting, acid etching and spraying processes. The glue usually is oil-based and water-based. We use the oil-based glue, which has more stronger viscous force, and can also be used in warm temperature areas.

Colors: yellow and white. Width: 450 mm, 600 mm, 900 mm, 1200 mm.

The most popular thicknesses are: 0.09mm, 0.13 mm and 0.15 mm.

Sand powder for sandblasting16.jpg
Sand for sandblasting
​(No dust sand/abrasive)

We provide dust-free sand and abrasives. Its main components are Al2O3, Fe3O4, SiO2, which is strong enough to be used with horizontal and vertical sandblasting machines and can be reused many times.

There usually has several different sizes and colors:

Colors: Black, brown, gray colors.

Sizes: #60, #80, #100, #120

Vector Art Designs for sandblasting

We provide over 10,000 vector images. These are free with Vertical Cutting Plotter.​

  • CDR, EPS, AC6 files

  • Background wall series

  • Hallway and Partition door series

  • Screen and door plank series

  • Sliding doors, Push-pull door

  • Hanging sliding/pensile doors series

  • Shading and decorative wall series

  • Angle flower, edge flower and waistline series

  • Decorative painting series

  • ​Bath mirror and decorative mirror series
